Innovative Plug&Play TFT touch display series for industrial applications

Sie suchen einen Experten für Displays?

Neue Hightech
TFT-Touch-Display-Serie

  • Available sizes: 2,4” to 7” with resolutions from 320 x 240 px to 1024 x 600 px
  • Suitable for sunlight: 1000 cd/m² (PWM dimmable)
  • High-quality display: IPS panel (up to 178° viewing angle)
  • Industrial quality: Extended operating temperature range from -30 to +80 °C
  • Flexible options: With or without capacitive touch panel (CTP)
  • Easy installation: Adhesive frame with protection classes up to IP66/67 possible (touch displays)
  • Interface: 24-Bit-RGB
  • Standardised connector system: Hirose connector with the same pin assignment for all variants (no ZIF connector)
  • Power supply: Requires only a 3.3 V power supply
  • Plug&Play: With suitable display controller boards (find out more “Matching products for “Plug&Play”)
  • Customisation: Options available on request (including optional labelling, surface finishing, special protective glass, hardware and software) and possible from a requirement of approx. 500 units
Image Image Image
Discover products now

© Image: Adobe Stock

Display Overview

Go to displays with touch

SMMH024240320H-C12

SMMH035320240K-C09

SMMH043480272G-C28

SMMH050800480H-C22

SMMH0701024600SC20

240 x 320

320 x 240

480 x 272

800 x 480

1024 x 600

2.4“

3.5“

4.3“

5.0“

7.0“

Go to displays without touch

240 x 320

320 x 240

480 x 272

800 x 480

1024 x 600

2.4“

3.5“

4.3“

5.0“

7.0“

Navigation - SMMH024240320H-C12

SMMT024240320H-A13

SMMT035320240K-A10

SMMT043480272G-A29

SMMT050800480H-A23

SMMT0701024600SA21

With touch & front glass

Without touch & front glass

Part No.

Display size

Part No.

Display size

Navigation - SMMH035320240K-C09
Navigation - SMMH043480272G-C28
Navigation - SMMH050800480H-C22
Navigation - SMMH0701024600SC20
Navigation - SMMT024240320H-A13
Navigation - SMMT035320240K-A10
Navigation - SMMT043480272G-A29
Navigation - SMMT050800480H-A23
Navigation - SMMT0701024600SA21

Display Controller Boards S3/P4

Powered by ESoPe

  • Espressif Microcontroller ESP32-S3 and ESP32-P4
  • 50 Pole Hirose Plug: DF23C-50DP-0-5V
  • Universal interface to user application
  • Extensive open source software library
  • Piggy Back ready
  • Ready for Slint and LVGL
  • Easy GUI development Plug & Play

Matching products for "Plug&Play"

Display Controller Board for displays 2.4" to 4.3":

Espressif Microcontroller:

50 Pole Hirose Plug:

More Boards Coming Soon!


Coming Soon

Display Controller Board for displays 5" to 7":

  • SLD_C_W_P4_C6

Display Controller Board with ESP32-P4 series:


Display Markets

Industrie

Messtechnik

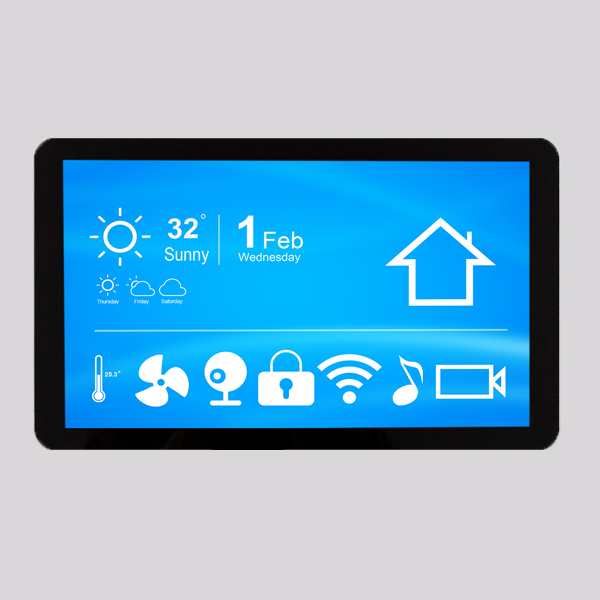

Smart Home /

Gebäudetechnik

(E-) Mobility

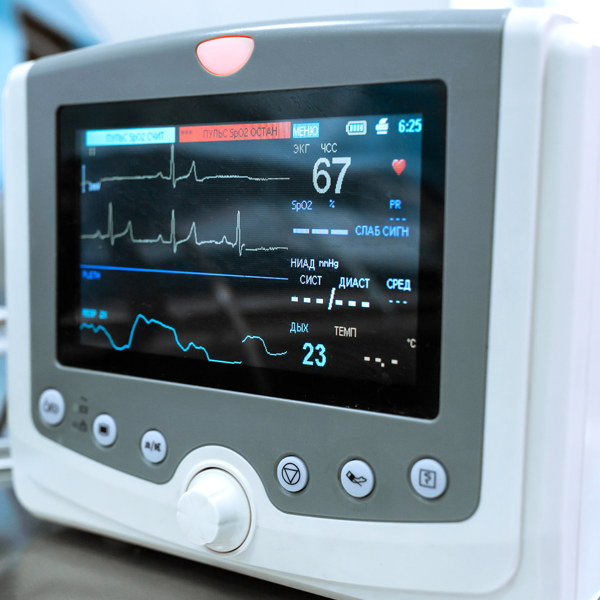

Medizin /

Beautycare

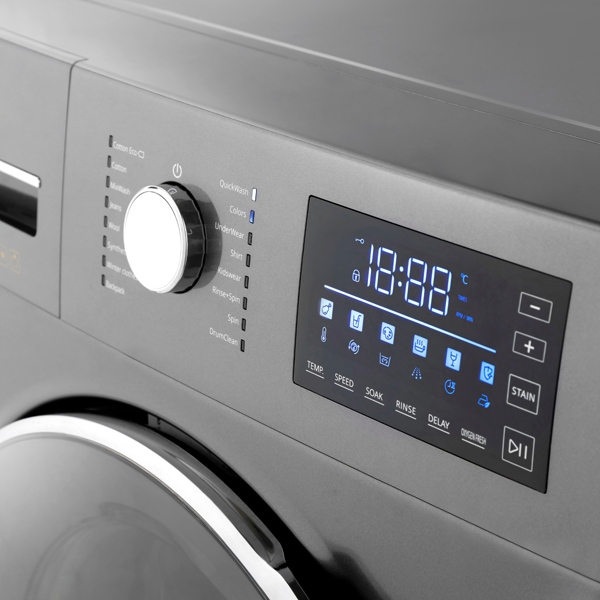

Home Appliance

Display - Benefits

Display Controller Boards S3/P4

powered by ESoPe

  • Espressif ESP32-S3 und ESP32-P4
  • Universelle Schnittstelle zur Benutzeranwendung
  • Umfangreiche Open-Source-Softwarebibliothek
  • Bereit für Piggy Back
  • Bereit für Slint und LVGL
  • Einfache GUI-Entwicklung: Plug & Play
  • Verfügbare Größen: 2,4” bis 7” mit Auflösungen
    von 320 x 240 px bis 1024 x 600 px
  • Sonnenlichttauglich: 1000 cd/m² (PWM dimmbar)
  • Hochwertiges Display: IPS-Panel (bis zu 178° Betrachtungswinkel)
  • Industriequalität: Erweiterter Betriebstemperaturbereich
    von -30 bis +80 °C
  • Optional: Mit oder ohne kapazitivem Touchpanel
  • Vormontierter, abdichtender 3M-Kleberahmen (IP-66)
  • Schnittstelle: 24-Bit-RGB
  • Anschluss: Nur ein einziger 50-poliger Steckverbinder
  • Stromversorgung: Nur eine 3,3-V-Stromversorgung erforderlich
  • Anpassung: Auf Anfrage erhältlich
